CSP-375-XXXX-10

Name: RobbJack CSP-375-XXXX-10 — Thru Coolant Saw Spacers
Brand: RobbJack
SKU: CSP-375-XXXX-10

Thru Coolant Saw Spacers

CSP thru-coolant spacer diagram showing thin and thick spacer cross-sections and the channeled spacer face — Dimension reference — labels match the specifications below

Request a Test ToolQuoted fast · ships direct Speeds & FeedsDialed to this exact tool — free

Free CAD & DataSTEP 3D DXF 2D ISO CSV CAM library

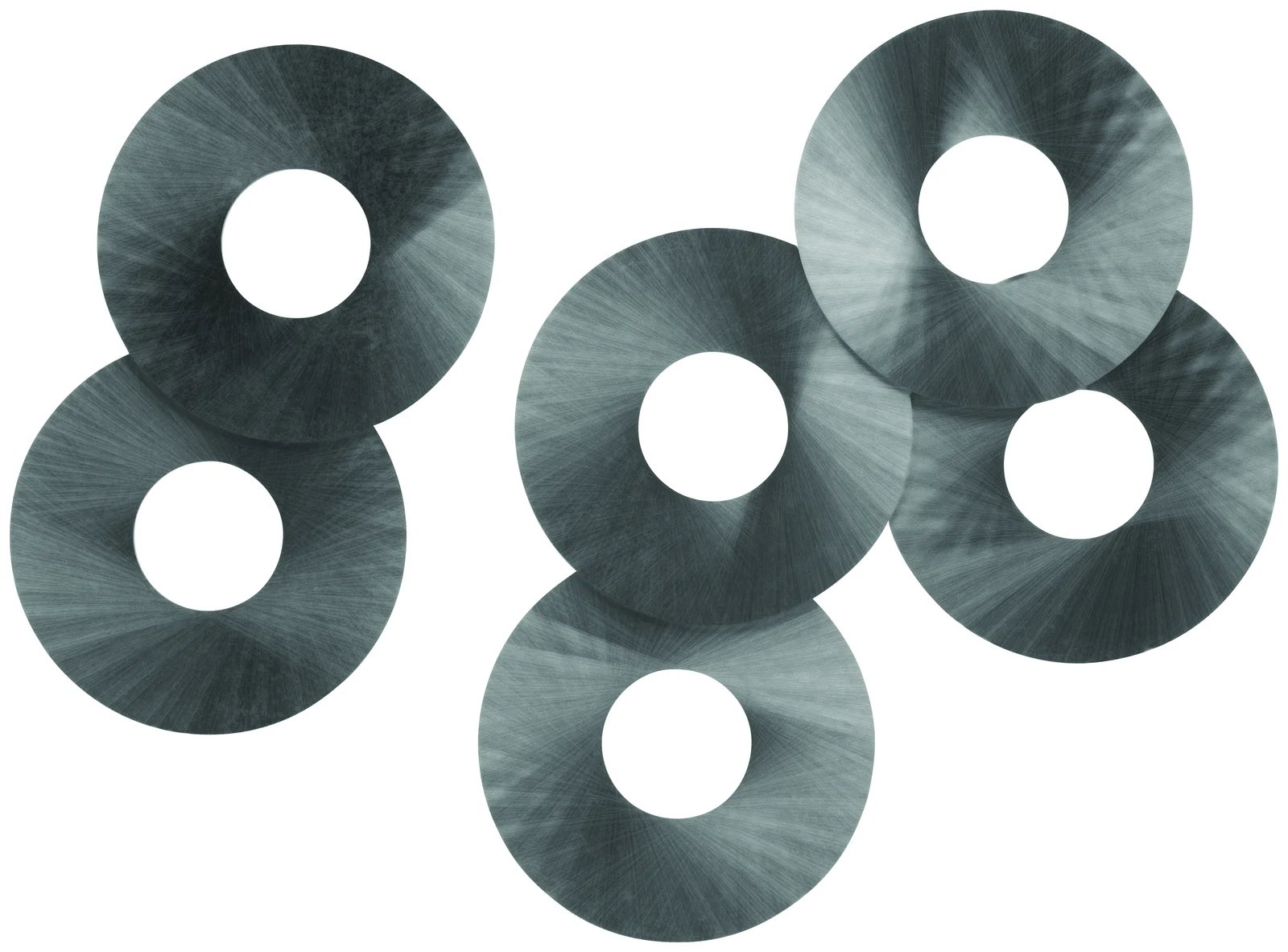

Set of solid carbide saw arbor spacers in assorted thicknesses

Solid carbide thru-coolant spacers ground to any thickness from .0020" to .2500" — they space a saw gang and flood coolant between every blade.

Only needed when ganging multiple saws with thru-coolant — must be used with an NAB thru-coolant arbor and CF thru-coolant flanges; coolant flows in between each saw
Made to your custom thickness: any thickness from 0.0020" to 0.2500" is standard, specified in ten-thousandths by replacing the four red digits in the part number (example: CSP-1000-0456-20 = .0456" spacer for an NAB-1000-TC)
Eight inside diameters match the NAB/CF line, 1/4" to 1-1/4", with 10-24 coolant channels matching the paired CF flange
Flanges ride the outside edges of the gang, spacers the inside edges — K-Series saws (flat and parallel hub) are recommended for gang applications
Solid carbide thru-coolant flanges and spacers eliminate burr and scratch problems

From the RobbJack Applications Guide.

About this series

CSP Solid Carbide Thru-Coolant Saw Spacers

Custom-thickness carbide spacers that flow coolant between ganged saws

RobbJack CSP solid carbide thru-coolant saw spacers are made to your custom thickness for gang operations (stacking more than one saw at a time). Coolant flows between each saw. They are only needed when ganging multiple saws with thru-coolant, and must be used with a thru-coolant arbor and thru-coolant flanges. K-series saws are recommended for gang applications.

Solid carbide construction
Made to custom thickness (any thickness from 0.0020" to 0.2500" is standard)
Allows coolant to flow between each saw in a gang
Eliminates burr and scratch problems
Multiple coolant channels per spacer (10 to 24 depending on size)

Only for ganging multiple saws with thru-coolant. Must be used with NAB Thru-Coolant arbor and CF Thru-Coolant flanges; K-series saws recommended for gang applications.

Headline spec

Inside diameters 1/4" through 1-1/4"; any thickness 0.0020"-0.2500" standard
