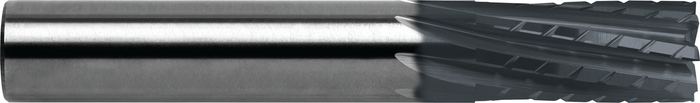

MCE-602-06
6 Flute Standard Length Metric Carbide Composite Router
6mm Dia 6-Flute Metric End Mill 20mm LOC, 6mm Shank, 63mm OAL
OrderingMCE-602-06·Uncoated·$121.45Change finish
6 and 8 flute carbide composite finishing routers — more edges in the cut for cleaner composite walls.
- 6 flute on 1/4" diameter (CE-602-08), 8 flute on 3/8" and 1/2" diameters (CE-802-12, CE-802-16)
- High flute count spreads wear across more cutting edges for finishing composite edges
- Three finishes: uncoated, Black Widow DLC coated (-DLC), and Diamond Coated DCC (-D)
- Metric MCE line: 6mm (6 flute), 10mm and 12mm (8 flute), 63-76mm OAL
- 10-20X tool life with diamond coating
- Tolerances: cutting dia -.001/-.003, shank dia -.0001/-.0002, flute length +.030/+.060 (over 0.3125"), OAL +/-.060
- Slotting, side milling, helical interpolation, ramping; dry, wet, cold air, or spray mist
From the RobbJack Applications Guide.
About this series
MCE Metric Carbide Composite Routers
6 and 8 flute metric routers engineered for composites
The MCE series is the metric version of the CE carbide composite router, offered in 6 flute (MCE-602) and 8 flute (MCE-802) configurations with a square end for machining composites. Offered uncoated, Black Widow DLC coated, and Diamond Coated (DCC), with diamond-coated versions providing 10-20X tool life. Sizes 6 mm, 10 mm and 12 mm.
- 6 and 8 flute, square end
- Metric sizes 6 mm, 10 mm, 12 mm
- Uncoated, Black Widow DLC, or Diamond Coated (DCC)
- Diamond coating delivers 10-20X tool life
Composites
Headline spec
Metric, 6/8 flute, composite-specific
Best for
- Machining composites
- Slotting, side milling, helical interpolation and ramping
- Roughing through finishing
Specifications
US machining terms with ISO 13399 codes.
- Cutting DiameterDC
- 6 mm
- Diameter ToleranceDC tol
- -0.001/-0.003
- Shank DiameterDMM
- 6 mm
- Length of Cut (LOC)APMX
- 20 mm
- Overall Length (OAL)OAL
- 63 mm
- Number of FlutesNOF
- 6
- Helix AngleFHA
- 10°
- Helix HandFHH
- Right-hand
- Cut Direction
- Right-hand cut
- End Type
- Square End
- Center Cutting
- Yes — plunges
- Series
- MCE-602 — 6 Flute Standard Length Metric Carbide Composite Router
Cuts these materials
Applications
See it run
Tolerances
| Type | Min | Max |
|---|---|---|
| Cutting Diameter | -0.001 | -0.003 |
| Length of Cut | +0.02 | +0.03 |
| Overall Length | +0.06 | -0.06 |
| Shank Diameter | -0.0001 | -0.0002 |
Choose the finish(3 options)
Compare →Each finish is a different part number and price.
Not sure? Compare tool coatings — or leave it uncoated, the most common choice for aluminum.
Part MCE-602-06
Made & shipped in the USA · lead time confirmed at order. Test this tool in your spindle at retail, or get it through your RobbJack distributor.
Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.
Uncoated
$121.45
MCE-602-06
Starting speeds & feeds for the MCE-602-06
Dial in for your machine →RobbJack's tested starting numbers for this exact tool, from the same engine and the same default machine as the calculator: a 12,000 RPM / 400 IPM / 30 HP machining center, rigid setup, full-depth cut. A faster or smaller spindle changes the RPM and feed — enter yours in the calculator and it re-governs every number.
| Material | Operation | SFM | RPM | Feed (IPM) | Chip load / tooth | DOC (in) | WOC (in) |
|---|---|---|---|---|---|---|---|
| Carbon Fiber CFRP | Roughing — full slot | 743 | 12,000 | 136.8 | .00190 | .2362 | .2362 |
| Carbon Fiber CFRP | Finishing | 743 | 12,000 | 64.8 | .00090 | .2362 | .0118 |
| Lab Top (Laminate) | Roughing — full slot | 743 | 12,000 | 136.8 | .00190 | .2362 | .2362 |
| Lab Top (Laminate) | Finishing | 743 | 12,000 | 64.8 | .00090 | .2362 | .0118 |
Read before you run
Recommendations are computed starting points based on typical conditions — not guarantees of performance, tool life, or fitness for your application. Machining involves inherent risk: you are solely responsible for safe operation, for verifying every parameter against your machine, spindle, toolholding, workholding, and guarding limits, and for proving all parameters on a test cut before production. RobbJack Corporation assumes no liability for tool breakage, machine damage, scrapped parts, production loss, or personal injury arising from use of these recommendations. By using this calculator you accept RobbJack's Terms & Conditions.
More in the MCE-602 series
Same series, different size — what changes from this tool is shown in red.
