MCR-402-06

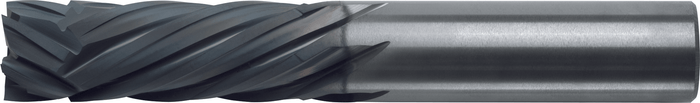

4 Flute Standard Length Metric Composite Compression Router
6mm Dia 4-Flute Metric End Mill 20mm LOC, 6mm Shank, 63mm OAL
Compression router geometry — clean edges on both faces of the laminate, 10-20X tool life.
- Compression geometry: up-shear flutes at the tip transition to down-shear flutes above, pressing both skins of the laminate inward so neither face frays or delaminates
- 4 flute on 1/4" diameter (CR-402-08), 6 flute on 3/8" and 1/2" diameters (CR-602-12, CR-602-16)
- Dedicated up-shear length per size: 3/16" on 1/4" dia, 1/4" on 3/8" and 1/2" dia
- Three finishes: uncoated, Black Widow DLC coated (-DLC), and Diamond Coated DCC (-D)
- Metric MCR line in 6mm (4 flute), 10mm and 12mm (6 flute) with 5-6mm upshear lengths
- 10-20X tool life with diamond coating
- Tolerances: cutting dia -.001/-.003, shank dia -.0001/-.0002, OAL +/-.060
- Runs dry, wet, cold air, or spray mist; slotting, side milling, helical interpolation, ramping through finishing
From the RobbJack Applications Guide.
About this series
MCR Metric Compression Routers
4 and 6 flute metric compression routers for composites
The MCR series is the metric version of the CR compression router, offered in 4 flute (MCR-402) and 6 flute (MCR-602) configurations with a square end and an upshear length for machining composites. Offered uncoated, Black Widow DLC coated, and Diamond Coated (DCC), with diamond-coated versions providing 10-20X tool life. Sizes 6 mm, 10 mm and 12 mm.
- 4 and 6 flute compression, square end
- Metric sizes 6 mm, 10 mm, 12 mm
- Uncoated, Black Widow DLC, or Diamond Coated (DCC)
- Diamond coating delivers 10-20X tool life
Composites
Headline spec
Metric, 4/6 flute compression, composite-specific
Best for
- Machining composites
- Slotting, side milling, helical interpolation and ramping
- Roughing through finishing
Specifications
US machining terms with ISO 13399 codes.
- Cutting DiameterDC
- 6 mm
- Diameter ToleranceDC tol
- -0.001/-0.003
- Shank DiameterDMM
- 6 mm
- Length of Cut (LOC)APMX
- 20 mm
- Overall Length (OAL)OAL
- 63 mm
- Number of FlutesNOF
- 4
- Helix HandFHH
- Right-hand
- Cut Direction
- Right-hand cut
- End Type
- Square End
- Center Cutting
- Yes — plunges
- Shear Direction
- Compression (up + down)
- Series
- MCR-402 — 4 Flute Standard Length Metric Composite Compression Router
Cuts these materials
Applications
See it run
Tolerances
| Type | Min | Max |
|---|---|---|
| Cutting Diameter | -0.001 | -0.003 |
| Length of Cut | +0.02 | +0.03 |
| Overall Length | +0.06 | -0.06 |
| Shank Diameter | -0.0001 | -0.0002 |
Made & shipped in the USA · lead time confirmed at order. Buy at retail or through your distributor.
Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.
Adds Diamond Coated (DCC) · $353.05 — our pick for your material. Choose another finish below.
