PM-104-04

1 Flute Up Shear Polished Flute Carbide Router for Plastics and Aluminum

0.125-in Dia 1-Flute End Mill, 0.5-in LOC, 0.125-in Shank, 2-in OAL

OrderingPM-104-04·$35.55

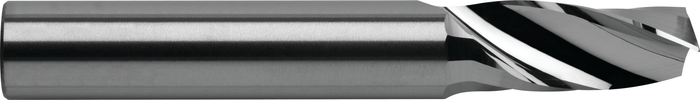

1 Flute Up Shear Polished Flute Carbide Router for Plastics and Aluminum — PM-104-04
Series photo — representative of the PM family
OAL 2″Flute 0.5″Shank Ø0.125″Cutter Ø0.125″Square
Scaled drawing — true to this tool's dimensions (inch)
Speeds & FeedsDialed to this exact tool — free
Free CAD & DataSTEP 3DDXF 2DISO CSVCAM library

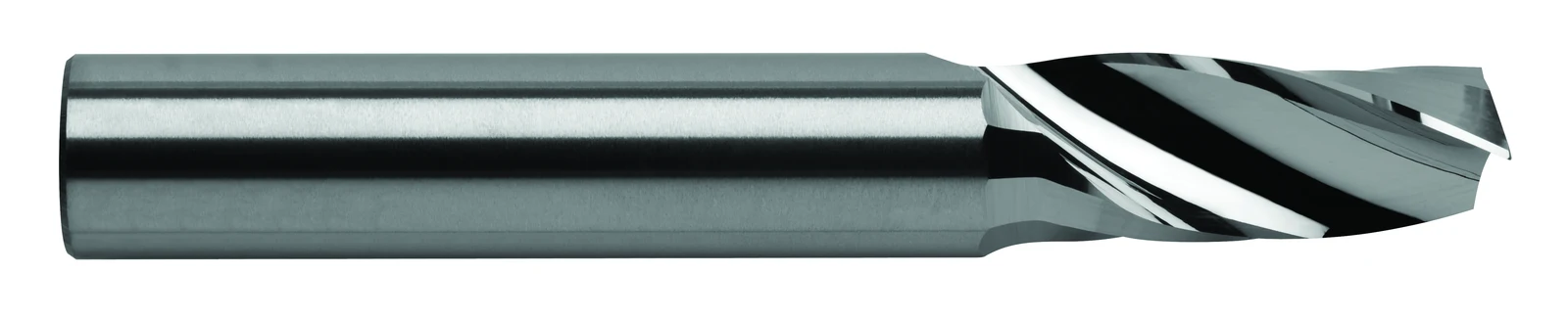

RobbJack PM single flute up-shear router with polished flute for plastics

Best tool for plastics — polished single flute that eliminates material sticking to the tool and melting in the cut.

  • 1 flute polished-flute design gives the chip the whole gullet, so soft plastics evacuate before they can re-weld or melt in the cut
  • PM = up-shear (pulls chips up and out, best general chip clearance); PMD = down-shear (pushes down on the material for clean top surfaces and thin sheet hold-down); GTS = 2 flute straight (0° helix) for materials that must not lift at all
  • Tuffy grade carbide substrate
  • PM sizes 1/8"-1/2" including long versions (PM-108-06L, PM-108-08L); PMD in 1/8", 3/16", 1/4"; GTS in 1/8"-1/2"
  • Metric MPM up-shear from 4mm to 12mm
  • Also the best tool for gummy/soft aluminum — polished flute reduces material sticking to the tool
  • Tolerances: cutting dia +0.000/-0.002, shank dia -0.0001/-0.0002, flute length +0.060/-0.000, OAL +/-0.060
  • Materials: plastics, wood, aluminum; dry, wet, cold air, or spray mist

From the RobbJack Applications Guide.

About this series

PM / MPM / PMD / GTS Tuffy Grade Carbide Routers

The best tool for plastics.

RobbJack's Tuffy-grade carbide router bits include the PM (1-flute up-shear, polished), MPM (metric 1-flute up-shear), PMD (1-flute down-shear, polished), and GTS (2-flute straight flute) series. These uncoated, polished tools are the best tool for plastics, eliminating material sticking to the tool and melting in the cut.

  • 1-flute up-shear (PM), 1-flute down-shear (PMD), and 2-flute straight (GTS) configurations
  • Polished flutes
  • Metric 1-flute up-shear (MPM) available
  • Eliminates material sticking to the tool and melting in the cut

Aluminum, Plastics, Wood. Dry, Wet, Cold Air, or Spray Mist. Applications: slotting, side milling, helical interpolation, ramping, roughing, semi-finishing, finishing.

Best for

  • Routing plastics without melting or material buildup
  • Aluminum and wood routing

Specifications

US machining terms with ISO 13399 codes.

Cutting DiameterDC
0.125″
Diameter ToleranceDC tol
0.0000/-0.0020
Max Cutting DiameterDCX
0.125″
Shank DiameterDMM
0.125″
Length of Cut (LOC)APMX
0.5″
Overall Length (OAL)OAL
2″
Number of FlutesNOF
1
Helix AngleFHA
25°
Helix HandFHH
Right-hand
Cut Direction
Right-hand cut
End Type
Square End
Center Cutting
Yes — plunges
Shear Direction
Up-shear
Series
PM — 1 Flute Up Shear Polished Flute Carbide Router for Plastics and Aluminum

Cuts these materials

AluminumPlasticsWood

Applications

SlottingSide MillingHelical InterpolationRampingRoughingSemi-FinishingFinishingDryWetCold AirSpray Mist

Features

Polished

See it run

Tolerances

TypeMinMax
Cutting Diameter0-0.002
Length of Cut+0.060
Overall Length+0.06-0.06
Shank Diameter-0.0001-0.0002
PM-104-04Made to order$35.55
Uncoated · your price$35.55

Part PM-104-04

Made & shipped in the USA · lead time confirmed at order. Test this tool in your spindle at retail, or get it through your RobbJack distributor.

Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.

Adds PM-104-04 · · $35.55

Calculate Speeds & Feeds
CADDXF·STEP
Add to Quote
Download ISO 13399 data (.csv)

Proven in the field

See the case studies →

Starting at

$35.55

PM-104-04

Starting speeds & feeds for the PM-104-04

Dial in for your machine →

RobbJack's tested starting numbers for this exact tool, from the same engine and the same default machine as the calculator: a 12,000 RPM / 400 IPM / 30 HP machining center, rigid setup, full-depth cut. A faster or smaller spindle changes the RPM and feed — enter yours in the calculator and it re-governs every number.

Starting speeds and feeds for RobbJack PM-104-04
MaterialOperationSFMRPMFeed (IPM)Chip load / toothDOC (in)WOC (in)
AcetalRoughing — full slot39312,00038.4.00320.1250.1250
AcetalFinishing39312,00019.2.00160.1250.0063

Read before you run

Recommendations are computed starting points based on typical conditions — not guarantees of performance, tool life, or fitness for your application. Machining involves inherent risk: you are solely responsible for safe operation, for verifying every parameter against your machine, spindle, toolholding, workholding, and guarding limits, and for proving all parameters on a test cut before production. RobbJack Corporation assumes no liability for tool breakage, machine damage, scrapped parts, production loss, or personal injury arising from use of these recommendations. By using this calculator you accept RobbJack's Terms & Conditions.
