ST-434-04

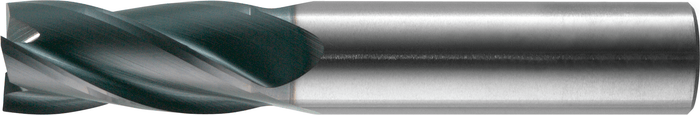

4 Flute Standard Length Super Tuffy Grade Carbide End Mill with Hone
0.125-in Dia 4-Flute End Mill, 0.5-in LOC, 0.125-in Shank, 1.5-in OAL
OrderingST-434-04·Uncoated·$46.75Change finish
Super Tuffy grade carbide end mills for steel and high-temp alloys -- 3, 4, and 6 flute geometries with T-Process honed edges, corner breaks, and helix angles from 30 to 60 degrees, in inch (ST) and metric (MST).
- Super Tuffy carbide grade built for cast iron, steel, stainless steel, and super alloys
- ST-341 (3 flute stub) and ST-343 (3 flute standard): 40-degree helix with corner break and T-Process hone, rated high performance from slotting and ramping through finishing, 1/8" to 3/4"
- ST-360 (3 flute standard): 60-degree high-helix finisher for side milling, 1/8" to 3/4"
- ST-430 (4 flute standard, sharp edges) and ST-434 (4 flute standard, corner break with T-Process hone): 30-degree helix for side milling from roughing through finishing, 1/8" to 3/4" including half sizes on ST-430
- ST-630 (6 flute square end, 30-degree helix) and ST-646 (6 flute corner radius, 40-degree helix, honed radius): 3/8" to 1"; ST-646 available with coolant grooves (see guide page 13)
- Corner break sizes scale with diameter, from .003/.005 at 1/8" up to .011/.014 at 3/4"; ST-646 corner radii run .005/.007 to .012/.015
- Metric MST line mirrors the geometry: MST-341, MST-360, MST-430, MST-434 from 3 mm to 20 mm, and MST-646 from 10 mm to 20 mm
- Available uncoated or in TiN, TiCN, and AlTiN coatings
- Inch tolerances (ST-341/343): cutting diameter +.000/-.002 (1/8" to 1/4") or +.000/-.003 (5/16" to 3/4"), shank -.0001/-.0002, OAL +/-.060; ST-630/646 cutting diameter +.001/-.000; metric MST cutting diameter +.000/-.075 mm
- Need reach? See End Mill Modifications, guide page 14
From the RobbJack Applications Guide.
About this series
ST / MST Super Tuffy Grade Carbide End Mills
Honed-edge Super Tuffy tools for steel & high-temp alloys
The ST Series are Super Tuffy Grade carbide end mills with a T-Process honed edge, available in multiple geometries: ST-341 (3 flute, stub, 40 degree helix), ST-343 (3 flute, standard length), ST-360 (3 flute, 60 degree helix), ST-430 and ST-434 (4 flute, 30 degree helix), ST-630 and ST-646 (6 flute, 30/40 degree helix). Offered uncoated or with TiN, TiCN or AlTiN coatings, plus metric MST equivalents.
- 3, 4 and 6 flute configurations
- Square end and corner-radius / corner-break options
- T-Process honed edge
- Helix angles from 30 to 60 degrees depending on series
- Available uncoated or TiN, TiCN, AlTiN coated
- ST-646 available with coolant grooves
- Inch (ST) and metric (MST) sizes
Cast iron, steel, stainless steel and super alloys. Applications: slotting, side milling, helical interpolation, ramping, high-performance roughing, semi-finishing and finishing (dry, wet, cold air or spray mist), depending on series.
Headline spec
Super Tuffy Grade carbide with T-Process honed edge; uncoated or TiN/TiCN/AlTiN coated
Best for
- Steel and stainless steel
- Super alloys and high-temp materials
- Roughing through finishing
- Side milling and slotting
Specifications
US machining terms with ISO 13399 codes.
- Cutting DiameterDC
- 0.125″
- Diameter ToleranceDC tol
- 0.0010/0.0000
- Max Cutting DiameterDCX
- 0.126″
- Shank DiameterDMM
- 0.125″
- Length of Cut (LOC)APMX
- 0.5″
- Overall Length (OAL)OAL
- 1.5″
- Corner ChamferCHW
- 0.003″
- Chamfer AngleKCH
- 45°
- Number of FlutesNOF
- 4
- Helix AngleFHA
- 30°
- Helix HandFHH
- Right-hand
- Cut Direction
- Right-hand cut
- End Type
- Corner Break
- Center Cutting
- Yes — plunges
- Edge Prep
- T-Process honed edge
- Series
- ST-434 — 4 Flute Standard Length Super Tuffy Grade Carbide End Mill with Hone
Cuts these materials
Applications
See it run
Tolerances
| Type | Min | Max |
|---|---|---|
| Cutting Diameter | +0.001 | 0 |
| Length of Cut | +0.03 | 0 |
| Overall Length | +0.06 | -0.06 |
| Shank Diameter | -0.0001 | -0.0002 |
Choose the finish(4 options)
Compare →Each finish is a different part number and price.
Not sure? Compare tool coatings — or leave it uncoated, the most common choice for aluminum.
Part ST-434-04
Made & shipped in the USA · lead time confirmed at order. Test this tool in your spindle at retail, or get it through your RobbJack distributor.
Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.
Uncoated
$46.75
ST-434-04
Starting speeds & feeds for the ST-434-04
Dial in for your machine →RobbJack's tested starting numbers for this exact tool, from the same engine and the same default machine as the calculator: a 12,000 RPM / 400 IPM / 30 HP machining center, rigid setup, full-depth cut. A faster or smaller spindle changes the RPM and feed — enter yours in the calculator and it re-governs every number.
| Material | Operation | SFM | RPM | Feed (IPM) | Chip load / tooth | DOC (in) | WOC (in) |
|---|---|---|---|---|---|---|---|
| Gray Iron | Roughing — full slot | 393 | 12,000 | 76.8 | .00160 | .0625 | .1250 |
| 4140 Steel | Roughing — full slot | 220 | 6,723 | 10.8 | .00040 | .0625 | .1250 |
| 303 Stainless | Roughing — full slot | 393 | 12,000 | 28.8 | .00060 | .0625 | .1250 |
Read before you run
Recommendations are computed starting points based on typical conditions — not guarantees of performance, tool life, or fitness for your application. Machining involves inherent risk: you are solely responsible for safe operation, for verifying every parameter against your machine, spindle, toolholding, workholding, and guarding limits, and for proving all parameters on a test cut before production. RobbJack Corporation assumes no liability for tool breakage, machine damage, scrapped parts, production loss, or personal injury arising from use of these recommendations. By using this calculator you accept RobbJack's Terms & Conditions.
