MCPCD-203-06

2 Flute Standard Length Metric PCD-Tipped Diamond Router

PCD CFRP Drill Point Router 6mm Dia, 2 Flute, 14mm LOC, 50mm OAL

OrderingMCPCD-203-06·$517.05

2 Flute Standard Length Metric PCD-Tipped Diamond Router — MCPCD-203-06

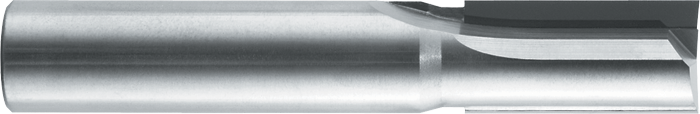

Series photo — representative of the MCPCD-203 family
OAL 50 mmFlute 14 mmShank Ø6 mmCutter Ø6 mmSquare
Scaled drawing — true to this tool's dimensions (mm)
Speeds & FeedsDialed to this exact tool — free
Free CAD & DataSTEP 3DDXF 2DISO CSVCAM library
RobbJack CPCD-203 PCD-tipped composite router with 118 degree drill point for plunging into carbon fiber

Best trimming tool for composites — no delamination, no uncut fibers, no fiber pull out.

  • 118° drill point lets the tool plunge straight into the part without blowing out the back side
  • Over 13,000 linear inches of cut in aircraft CFRP material
  • No delamination, no uncut fibers, no fiber pull out — the guide's 'Best Trimming Tool for Composites'
  • 2 flute PCD diamond tips, resharpenable, 10-20X tool life over carbide
  • CPCD-203 inch sizes 1/8" to 3/4" (flute lengths 5/16"-7/8", OAL 1-1/2" to 4")
  • MCPCD-203 metric drill-point and square-end versions in 3, 6, 10, 12mm
  • Proven on wing-spar trimming; part of a case study with $548,000 cost savings per year
  • Tolerances: cutting dia +/-.003, shank dia -.0001/-.0002, OAL +/-.060

From the RobbJack Applications Guide.

About this series

MCPCD-203 Metric PCD-Tipped Composite Routers

Metric PCD-tipped routing for composites.

The MCPCD-203 is the metric version of RobbJack's 2-flute PCD-tipped composite routers, available in square-end (standard length) and drill-point (118 degree) configurations. Like the CPCD line, it uses a new PCD grade and geometries specifically designed for CFRP materials.

  • 2-flute PCD-tipped, metric sizes (3mm-12mm)
  • Square-end and 118 degree drill-point configurations
  • New PCD grade and geometries specifically designed for CFRP

Composites / CFRP. Dry, Wet, Cold Air, or Spray Mist. Applications: slotting, side milling, helical interpolation, ramping, roughing, semi-finishing, finishing.

Headline spec

10-20X tool life over carbide

Best for

  • Metric routing and trimming of composite/CFRP parts

Specifications

US machining terms with ISO 13399 codes.

Cutting DiameterDC
6 mm
Diameter ToleranceDC tol
0.003/-0.003
Shank DiameterDMM
6 mm
Length of Cut (LOC)APMX
14 mm
Overall Length (OAL)OAL
50 mm
Number of FlutesNOF
2
End Type
Square End
Center Cutting
Yes — plunges
Tip Material
Brazed PCD (polycrystalline diamond)
Re-sharpenable
Yes
Series
MCPCD-203 — 2 Flute Standard Length Metric PCD-Tipped Diamond Router

Cuts these materials

AluminumCopper & BrassMagnesiumPlasticsComposites

Applications

SlottingSide MillingHelical InterpolationRampingRoughingSemi-FinishingFinishingDryWetCold AirSpray Mist

See it run · 2 videos

Tolerances

TypeMinMax
Cutting Diameter+0.003-0.003
Length of Cut+0.03-0.03
Overall Length+0.06-0.06
Shank Diameter-0.0001-0.0002
MCPCD-203-06In stock$517.05
Uncoated · your price$517.05

Part MCPCD-203-06

Made & shipped in the USA · lead time confirmed at order. Test this tool in your spindle at retail, or get it through your RobbJack distributor.

Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.

Adds MCPCD-203-06 · · $517.05

Calculate Speeds & Feeds
CADDXF·STEP
Add to Quote
Download ISO 13399 data (.csv)

Proven in the field

See the case studies →

Starting at

$517.05

MCPCD-203-06

Starting speeds & feeds for the MCPCD-203-06

Dial in for your machine →

RobbJack's tested starting numbers for this exact tool, from the same engine and the same default machine as the calculator: a 12,000 RPM / 400 IPM / 30 HP machining center, rigid setup, full-depth cut. A faster or smaller spindle changes the RPM and feed — enter yours in the calculator and it re-governs every number.

Starting speeds and feeds for RobbJack MCPCD-203-06
MaterialOperationSFMRPMFeed (IPM)Chip load / toothDOC (in)WOC (in)
Carbon Fiber CFRPRoughing — full slot74312,00045.6.00190.2362.2362
Carbon Fiber CFRPFinishing74312,00021.6.00090.2362.0118
Lab Top (Laminate)Roughing — full slot74312,00045.6.00190.2362.2362
Lab Top (Laminate)Finishing74312,00021.6.00090.2362.0118

Read before you run

Recommendations are computed starting points based on typical conditions — not guarantees of performance, tool life, or fitness for your application. Machining involves inherent risk: you are solely responsible for safe operation, for verifying every parameter against your machine, spindle, toolholding, workholding, and guarding limits, and for proving all parameters on a test cut before production. RobbJack Corporation assumes no liability for tool breakage, machine damage, scrapped parts, production loss, or personal injury arising from use of these recommendations. By using this calculator you accept RobbJack's Terms & Conditions.
