End MillMade in USA

MXF-802-20-020

8 Flute Standard Length High Performance Metric Carbide End Mill

20mm Dia 8-Flute Metric End Mill 38mm LOC, 20mm Shank, 104mm OAL, 2mm CR with Weldon Flats

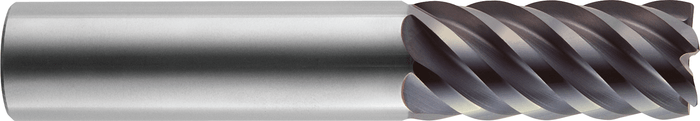

8 Flute Standard Length High Performance Metric Carbide End Mill — MXF-802-20-020
Series photo — representative of the MXF-802 family
OAL 104 mmFlute 38 mmShank Ø20 mmCutter Ø20 mmR2 mm
Scaled drawing — true to this tool's dimensions (mm)
Speeds & FeedsDialed to this exact tool — free
Free CAD & DataSTEP 3DDXF 2DISO CSVCAM library
RobbJack XF Series 6-flute 45-degree helix Tuffy grade carbide end mill with AlTiN coating

6 and 8 flute, 45° helix Tuffy grade finishers for titanium, steels, and high-temp alloys — cut titanium up to 75 inches per minute.

  • 6 flute (XF-602, 3/8"–3/4") and 8 flute (XF-802, 3/4"–1") Tuffy grade carbide with 45° helix, AlTiN coated
  • Metric MXF line: MXF-602 in 10–16 mm and MXF-802 in 20–25 mm
  • Corner radius on every tool — .030", .060", .090", .120" by size (metric 2.0, 2.5, 3.0 mm); no sharp-corner version
  • Headline claim from the guide: cut titanium up to 75 inches/minute (1905 mm/minute)
  • Materials: titanium, cast iron, steel, stainless steel, and super alloys up to 40 HRc hardness
  • A dedicated side-milling finisher — applications are side milling, high-performance semi-finishing, and finishing (no slotting rating), run dry, wet, cold air, or spray mist
  • XF finish profiling guidance: about .1 × diameter radial width at 1 × diameter axial depth; see the guide's trochoidal tool paths at robbjack.com/robbjack-tv
  • Optional flats (-FL) on every inch size for high-torque holding; metric tools do not have flats
  • Anti-pull-out h4 shank tolerance — tightest in the industry
  • Tolerances: cutting dia −.001/−.002, shank −.0001/−.0002, flute length +.060/−.000 (MXF: cutting dia −.025/−.050 mm)

From the RobbJack Applications Guide.

Light radial, deep axial
Light radial, deep axial — Guide engagement diagrams: slotting at 1 × diameter width and .7 × diameter depth, XG-502 profiling at .5 × diameter radial by 1.5 × diameter axial, and XF finish profiling at just .1 × diameter radial engagement over a full diameter of depth — the multi-flute finishing recipe.

About this series

MXF Metric Tuffy Grade Carbide End Mills

Metric high-flute-count finishing tools for steel & difficult alloys

MXF is the metric variant of the XF Series: 6-flute (MXF-602) and 8-flute (MXF-802) Tuffy Grade carbide end mills with 45 degree helix, AlTiN coated, 10-25 mm sizes. Metric tools do not have flats.

  • 6 flute (MXF-602) and 8 flute (MXF-802) configurations
  • 45 degree helix, square end with corner radius
  • AlTiN coated
  • Metric sizes 10 mm to 25 mm
  • Metric tools do not have flats

Titanium, cast iron, steel, stainless steel and super alloys up to 40 HRc. Side milling, semi-finishing and finishing.

Headline spec

Metric 6/8-flute 45-degree-helix Tuffy Grade carbide, AlTiN coated

Best for

  • Metric high-speed finishing
  • Steel, stainless and difficult alloys
  • Titanium

Specifications

US machining terms with ISO 13399 codes.

Cutting DiameterDC
20 mm
Diameter ToleranceDC tol
-0.001/-0.002
Shank DiameterDMM
20 mm
Length of Cut (LOC)APMX
38 mm
Overall Length (OAL)OAL
104 mm
Corner RadiusRE
2 mm
Number of FlutesNOF
8
Helix AngleFHA
45°
Helix HandFHH
Right-hand
Cut Direction
Right-hand cut
End Type
Corner Radius
Center Cutting
Yes — plunges
Series
MXF-802 — 8 Flute Standard Length High Performance Metric Carbide End Mill

Cuts these materials

TitaniumCast IronSteelStainless SteelSuperalloys (Inconel…)Hardened 30–40 HRc

Applications

Side MillingHigh PerformanceHigh-SpeedSemi-FinishingFinishingDryWetCold AirSpray Mist

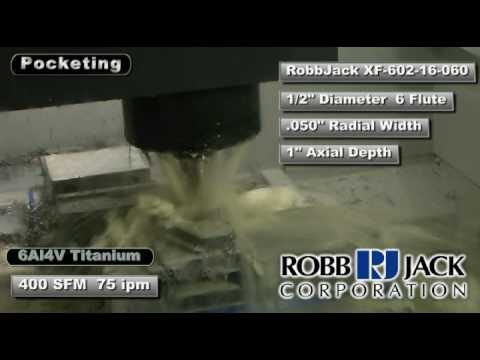

See it run · 2 videos

Tolerances

TypeMinMax
Cutting Diameter-0.001-0.002
Length of Cut+0.060
Overall Length+0.06-0.06
Shank Diameter-0.0001-0.0002
Starting at$463.70

Made & shipped in the USA · lead time confirmed at order. Buy at retail or through your distributor.

Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.

Adds Aluminum Titanium Nitride (AlTiN) · $463.70 — our pick for your material. Choose another finish below.

Calculate Speeds & Feeds
CADDXF·STEP
Add to Quote
Download ISO 13399 data (.csv)

Proven in the field

See the case studies →

Finishes (2)

Compare tool coatings →

Starting at

$463.70

Performance guaranteed

More in the MXF-802 series

Same series, different size — what changes from this tool is shown in red.
