PCD-118-0980

PCD Diamond Drill 118-deg 4 Facet for CFRP and Composites

PCD Tipped 118 Degree 4 Facet Drill 0.0980-in Dia, 1.5-in OAL

OrderingPCD-118-0980·Uncoated·$343.30

PCD Diamond Drill 118-deg 4 Facet for CFRP and Composites — PCD-118-0980
Series photo — representative of the PCD-118 family
OAL 1.5″Flute 0.5″Shank Ø0.125″Cutter Ø0.098″118° point
Scaled drawing — true to this tool's dimensions (inch)
Speeds & FeedsDialed to this exact tool — free
Free CAD & DataSTEP 3DDXF 2DISO CSVCAM library

Specifications

US machining terms with ISO 13399 codes.

Cutting DiameterDC
0.098″
Shank DiameterDMM
0.125″
Length of Cut (LOC)APMX
0.5″
Overall Length (OAL)OAL
1.5″
Number of FlutesNOF
2
Helix AngleFHA
25°
Point AngleSIG
118°
Shank Blend Angle
15°
Center Cutting
Yes — plunges
Tip Material
Brazed PCD (polycrystalline diamond)
Re-sharpenable
Yes
Series
PCD-118 — PCD Diamond Drill 118-deg 4 Facet for CFRP and Composites

Cuts these materials

AluminumCopper & BrassMagnesiumPlasticsComposites

Applications

DryWetCold AirSpray MistHole Drilling

Features

PCD Diamond

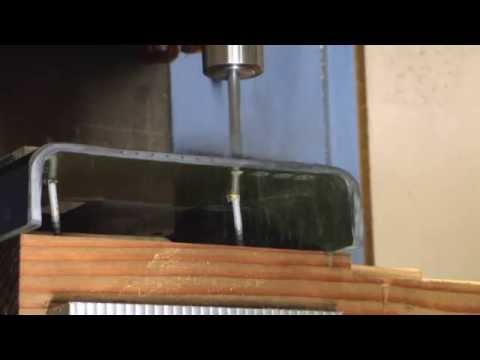

See it run · 2 videos

Tolerances

TypeMinMax
Length of Cut+0.030
Overall Length+0.060
Shank Diameter-0.0001-0.0002
Tool Diameter0-0.0005

Choose the finish(1 option)

Compare →

Each finish is a different part number and price.

Uncoated · your price$343.30

Part PCD-118-0980

Made & shipped in the USA · lead time confirmed at order. Test this tool in your spindle at retail, or get it through your RobbJack distributor.

Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.

Adds PCD-118-0980 · Uncoated · $343.30

Calculate Speeds & Feeds
CADDXF·STEP
Add to Quote
Download ISO 13399 data (.csv)

Proven in the field

See the case studies →

Uncoated

$343.30

PCD-118-0980

More in the PCD-118 series

Same series, different size — what changes from this tool is shown in red.
