PCD-11862-0625

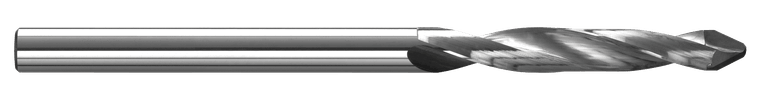

PCD Diamond Drill 118/62-deg CFRP Taper Tip One Shot Drill and Reamer
0.0625-in Dia Drill, 0.5-in LOC, 0.125-in Shank, 1.5-in OAL
OrderingPCD-11862-0625·Uncoated·$318.60
Specifications
US machining terms with ISO 13399 codes.
- Cutting DiameterDC
- 0.0625″
- Shank DiameterDMM
- 0.125″
- Length of Cut (LOC)APMX
- 0.5″
- Overall Length (OAL)OAL
- 1.5″
- Helix AngleFHA
- 25°
- Point AngleSIG
- 118°
- Shank Blend Angle
- 15°
- Center Cutting
- Yes — plunges
- Tip Material
- Brazed PCD (polycrystalline diamond)
- Re-sharpenable
- Yes
- Series
- PCD-11862 — PCD Diamond Drill 118/62-deg CFRP Taper Tip One Shot Drill and Reamer
Cuts these materials
Applications
Features
See it run · 2 videos
Tolerances
| Type | Min | Max |
|---|---|---|
| Length of Cut | +0.03 | 0 |
| Overall Length | +0.06 | 0 |
| Shank Diameter | -0.0001 | -0.0002 |
| Tool Diameter | 0 | -0.0005 |
Choose the finish(1 option)
Compare →Each finish is a different part number and price.
Part PCD-11862-0625
Made & shipped in the USA · lead time confirmed at order. Test this tool in your spindle at retail, or get it through your RobbJack distributor.
Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.
Proven in the field
- $548,290saved per year drilling carbon-fiber aircraft
- $216,000saved per year trimming aircraft skins
- 1,000%metal-removal increase in Inconel 718 (SPS)
Volume pricing
| Qty | Uncoated |
|---|---|
| 7+ | $309.04 |
| 13+ | $302.67 |
| 20+ | $293.11 |
Uncoated: PCD-11862-0625
List price per piece at the ordered quantity — the cart and checkout both bill these tiers.
Uncoated
$318.60
PCD-11862-0625
