MK63-5000-16-28
63mm Dia. 16mm Arbor 28 Teeth Alternate Tooth Chamfer Carbide Saw Non-Ferrous
63mm Diam. Slitting Saw, 5mm Thick, 16mm ID, 28 teeth Alternate Tooth Chamfer, Double Concavity, 25mm Hub
K-Series double-concavity. Built for deep slotting — these alternate-tooth-chamfer saws cut cleaner and last longer than standard saws in slots deeper than 3× the saw thickness.
About this series
Solid Carbide Slitting Saws
Tight widths and finishes HSS can't hold.
RobbJack solid carbide slitting saws are ground to ANY thickness up to 0.250" in 0.0001" increments — the listing shows common price-break thicknesses, but every size in between is standard. Coarse-pitch teeth suit non-ferrous materials and fine-pitch suit ferrous; standard-concavity covers general use, while K-series double-concavity, alternate-tooth-chamfer versions handle deep cuts.
- Any thickness up to 0.250" in 0.0001" increments — every size between the listed price breaks is standard
- Minimum thickness by diameter: 0.002" (3/4"–1"), 0.004" (1¼"–2"), 0.006" (2¼"–4"); K-series 0.020"
- Coarse pitch for non-ferrous, fine pitch for ferrous
- Standard and K-series double-concavity / alternate-tooth-chamfer versions
- Optional T-Process, hub, keyway and PVD coatings
- Thru-coolant saw systems available on NAB / AB arbors with CF flanges
Mounts on AB and NAB saw arbors. Choose K-series double-concavity saws for slots deeper than 3× the saw thickness.
Headline spec
Thickness tol +.0002/−.0000; diameter +.002/−.000
Best for
- Slotting & parting
- Tight-tolerance widths
- Ferrous & non-ferrous
Compatible saw arbors · 16 mm bore
NAB-625-TCRecommendedThru-coolant ultra-precision arbor — coolant straight to the cut · 22.225 mm shank
Max DOC *
16.577 mm
Ultra-precision arbor — 15× gripping force, lowest runout · 22.225 mm shank
Max DOC *
16.577 mm
Ultra-precision saw arbor · 19.05 mm shank
Max DOC *
17.53 mm
Metric ultra-precision saw arbor · 15.999 mm shank
Max DOC *
17.729 mm
Arbors that fit this saw's 16 mmarbor hole, recommended order first. * Max depth of cut = (saw diameter − arbor flange) ÷ 2, less a 0.050″ clearance cushion. Verify for your setup.
Specifications
US machining terms with ISO 13399 codes.
- DiameterDC
- 63 mm
- Saw Thickness
- 5 mm
- Arbor Diameter
- 16 mm
- Number of TeethNOF
- 28
- Max Depth of Cut (NAB-625-TC) *
- 16.586 mm
- Cuts
- Aluminum, Copper Alloy, Magnesium, Plastics, Composites
- Series
- MK63-16-28 — 63mm Dia. 16mm Arbor 28 Teeth Alternate Tooth Chamfer Carbide Saw Non-Ferrous
* Max depth of cut = (saw diameter − arbor flange) ÷ 2, less a 0.050″ clearance cushion. See per-arbor values below.
Cuts these materials
Features
See it run · 4 videos
Tolerances
| Type | Min | Max |
|---|---|---|
| Arbor Diameter | +0.005 | +0.01 |
| Concavity | +0.01 | 0 |
| Outside Diameter | +0.05 | 0 |
| Thickness | +0.005 | 0 |
Made & shipped in the USA · lead time confirmed at order. Buy at retail or through your distributor.
Performance guaranteed. Run it against the tool you use today — if it doesn't beat it, we'll make it right.
Adds Uncoated · $466.85 — our pick for your material. Choose another finish below.
Proven in the field
- $548,290saved per year drilling carbon-fiber aircraft
- $216,000saved per year trimming aircraft skins
- 1,000%metal-removal increase in Inconel 718 (SPS)
Need an in-between thickness?
Any thickness between this family's standard sizes is a standard order, not a special — the part number carries your exact thickness, priced as the next thicker catalog saw.
Finishes (1)
Uncoated
MK63-5000-16-28
$466.85
Available to order
Volume pricing
| Qty | Unit price |
|---|---|
| 3+ | $443.51 |
| 7+ | $420.17 |
| 25+ | $396.82 |
List price per unit · Uncoated. Coated finishes priced higher.
Starting at
$466.85
Performance guaranteed

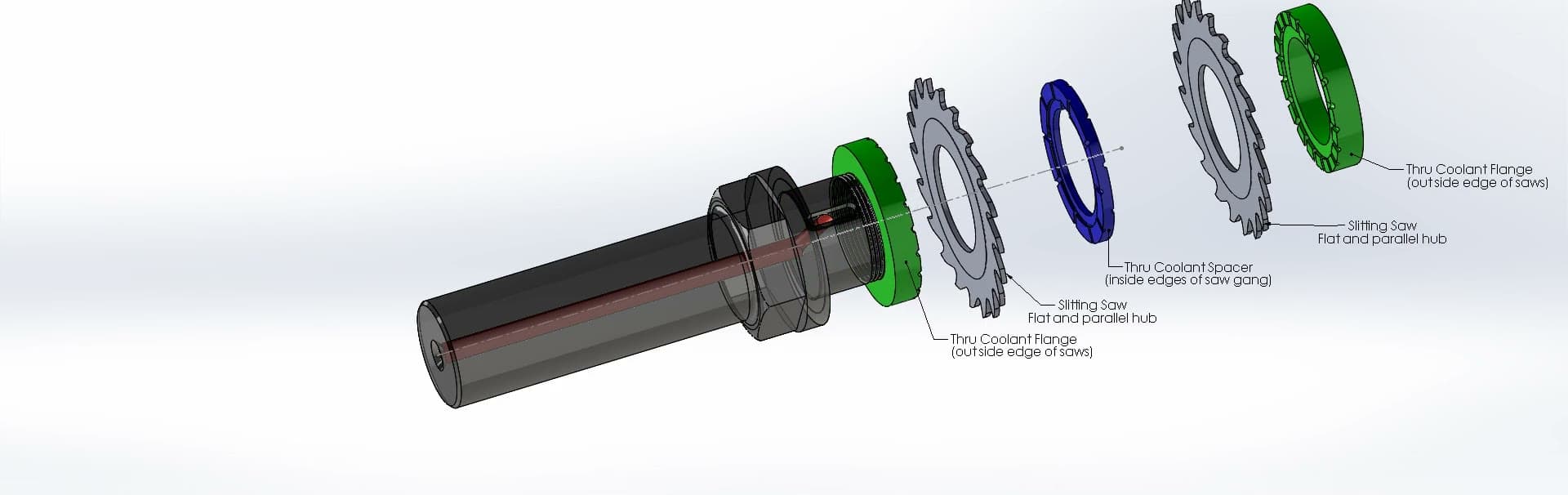

Thru-Coolant NAB Precision Saw Arbor
Slitting saws fail when coolant can't reach the cut — external flood gets blocked by fixturing and part geometry. The NAB arbor delivers coolant through the center and out through thru-coolant flanges onto both faces of every saw— equal pressure, right where the cut happens. Precision-ground to 25 millionths and grips the saw up to 15× more tightly — so it can't slip or spin on the arbor — for faster speeds & feeds, no walking, and far longer tool life.
- 0.000025″
- tolerance — 25 millionths
- 15×
- grip on the saw vs. a typical arbor
- ≈80%
- fewer causes of saw failure
- ↑ S&F
- faster speeds & feeds, longer life
Recommended for your 0.6299″ bore saw
Contact application engineering for the thru-coolant arbor that fits this saw bore.
Thru-coolant flanges are required. Add thru-coolant spacers to gang multiple saws. Solid carbide flanges last a lifetime and eliminate the burrs & scratches of steel.
Available in any thickness — 0.0236″ to 0.2362″
This saw is stocked in 10 standard thicknesses, but any thickness between 0.0236″ and 0.2362″ is a standard order, not a special — you order in ten-thousandths of an inch and RobbJack grinds it, priced as the next thicker catalog size. Thickness is held to +.0002″/−.0000″, and the part number carries your exact thickness. Enter your size in the in-between thickness panel above to get the part number and price. Saws thinner than .010″ are specials and non-returnable; most thicknesses from .008″ to .250″ ship within about 48 hours.
More in the MK63-16-28 series
Same series, different size — what changes from this tool is shown in red.
- MK63-0600-16-28$282.950.6 mm thickØ 63 mm28T16 mm bore
- MK63-1000-16-28$276.651 mm thickØ 63 mm28T16 mm bore
- MK63-1200-16-28$289.751.2 mm thickØ 63 mm28T16 mm bore
- MK63-1600-16-28$289.751.6 mm thickØ 63 mm28T16 mm bore
- MK63-2000-16-28$331.402 mm thickØ 63 mm28T16 mm bore
- MK63-2500-16-28$344.202.5 mm thickØ 63 mm28T16 mm bore
- MK63-3000-16-28$369.603 mm thickØ 63 mm28T16 mm bore
- MK63-4000-16-28$433.504 mm thickØ 63 mm28T16 mm bore
- MK63-6000-16-28$547.356 mm thickØ 63 mm28T16 mm bore
- M63-0200-16-28$247.650.2 mm thickØ 63 mm28T16 mm bore
- M63-0400-16-28$226.350.4 mm thickØ 63 mm28T16 mm bore
- M63-0600-16-28$203.850.6 mm thickØ 63 mm28T16 mm bore
