PCD Composite Finish Drill Point Router 0.25-in Dia, 2 Flute, 0.5625-in LOC, 2-in OAL
These PCD routers are best used of trimming composite materials such as fiberglass or carbon fiber CFRP or abrasive materials. The CPCD series comes with a drill point that helps eliminate break out of the material when first plunging into the material. Can be used to rough and finish parts in a single pas eliminating cycle time and linear inches required to cut parts in abrasive materials

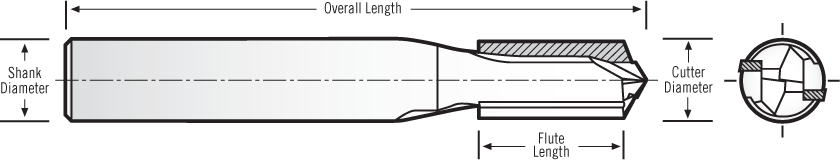

PREVIEW AND DIAGRAM (CPCD-203)


Specifications
Cutting Dia | 0.25″ |
Flute Len | 0.5625″ |
Shank Dia | 0.25″ |
Overall Len | 2″ |
Tolerances
Cutting Diameter | ±.003″ |
Length of Cut | ±.030″ |
Shank Diameter | −.0001/−.0002″ |
Overall Length | ±.060″ |
Catalog
Catalog Page | 59 |
Speed & Feeds
Other Tools in this Series
Tool # | Cutting Dia | Flute Len | Shank Dia | Overall Len | Coatings | Pg. # |
---|---|---|---|---|---|---|
CPCD-203-04 | 0.125″ | 0.3125″ | 0.125″ | 1.5″ | Uncoated | 59 |
CPCD-203-06 | 0.1875″ | 0.4375″ | 0.1875″ | 2″ | Uncoated | 59 |
CPCD-203-12 | 0.375″ | 0.625″ | 0.375″ | 2.5″ | Uncoated | 59 |
CPCD-203-16 | 0.5″ | 0.875″ | 0.5″ | 3″ | Uncoated | 59 |
CPCD-203-20 | 0.625″ | 0.875″ | 0.625″ | 3.5″ | Uncoated | 59 |
CPCD-203-24 | 0.75″ | 0.875″ | 0.75″ | 4″ | Uncoated | 59 |
