Standard Engraving Tool 0.01-in Tip, 0.25-in OD, 90-deg Incl. Angle, 2-in OAL

Standard for Most Applications Engraving Tool

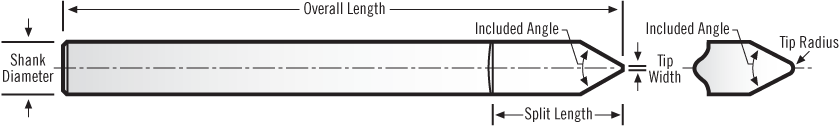

PREVIEW AND DIAGRAM (ET4)

Specifications

Tip 0.01″
Shank Dia 0.25″
Incl Angle 90.00°
Overall Len 2″
Split Len 0.65″

Tolerances

Cutting Diameter±.001″
Shank Diameter−.0002/−.0001″
Overall Length±.060″

Catalog

Catalog Page 106

Speed & Feeds

Material5000 RPM7500 RPM10000 RPM
Materialin/minin/minin/min
NON-FERROUS METALS
Aluminum/Aluminum Alloys 10 ipm15 ipm20 ipm
Brass/Bronze10 ipm15 ipm20 ipm
Copper/Copper Alloys10 ipm15 ipm20 ipm
Magnesium10 ipm15 ipm20 ipm
COMPOSITES
G10 Fiberglass15 ipm 22.5 ipm30 ipm
Graphite15 ipm 22.5 ipm30 ipm
Carbon Fiber15 ipm 22.5 ipm30 ipm
Plastics15 ipm 22.5 ipm30 ipm
FERROUS METALS
Cast Iron5 ipm7.5 ipm 10 ipm
Steel, Low Carbon5 ipm7.5 ipm 10 ipm
Steel, Medium Carbon7.5 ipm11.25 ipm15 ipm
Steel, Hardened2.5 ipm3.75 ipm5 ipm
Stainless Steel, Soft5 ipm7.5 ipm 10 ipm
Stainless Steel, Hard2.5 ipm3.75 ipm5 ipm
Inconel4 ipm6 ipm8IPM
Titanium,Soft5 ipm7.5 ipm 10 ipm
Titanium, Hard2.5 ipm3.75 ipm5 ipm

Other Tools in this Series

Tool # Tip Shank Dia Incl Angle Overall Len Split Len Pg. #
ET4-010600.01″0.25″60.00°2″0.65″106
ET4-020600.02″0.25″60.00°2″0.65″106
ET4-020900.02″0.25″90.00°2″0.65″106
ET4-030600.03″0.25″60.00°2″0.65″106
ET4-030900.03″0.25″90.00°2″0.65″106
ET4-050600.05″0.25″60.00°2″0.65″106
ET4-050900.05″0.25″90.00°2″0.65″106
ET4-060600.06″0.25″60.00°2″0.65″106
ET4-060900.06″0.25″90.00°2″0.65″106
