PCD Router 0.375-in Dia, 2 Flute, 0.5-in LOC, 2.5-in OAL

2 Flute Ball End Stub Length PCD-Tipped Diamond Router

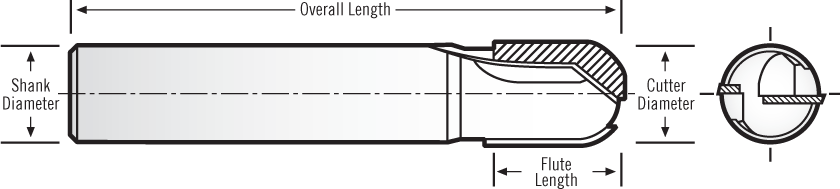

PREVIEW AND DIAGRAM (PCD-201-BN)

Specifications

Cutting Dia 0.375″
Flute Len 0.5″
Shank Dia 0.375″
Overall Len 2.5″
Corner Radius 0.1875″

Tolerances

Cutting Diameter±.003″
Length of Cut±.030″
Shank Diameter−.0001/−.0002″
Overall Length±.060″

Catalog

Catalog Page 59

Speed & Feeds

Other Tools in this Series

Tool # Cutting Dia Flute Len Shank Dia Overall Len Corner Radius Coatings Pg. #
PCD-201-04-BN0.125″0.25″0.125″1.5″0.0625″Uncoated59
PCD-201-06-BN0.1875″0.3125″0.1875″2″0.0938″Uncoated59
PCD-201-08-BN0.25″0.375″0.25″2″0.125″Uncoated59
PCD-201-16-BN0.5″0.625″0.5″3″0.25″Uncoated59
PCD-201-20-BN0.625″0.875″0.625″3.5″0.3125″Uncoated59
PCD-201-24-BN0.75″1″0.75″4″0.375″Uncoated59
