0.5-in Dia 3-Flute End Mill, 0.625-in LOC, 0.5-in Shank, 3-in OAL

3 Flute Stub Length Super Tuffy Grade Carbide End Mill

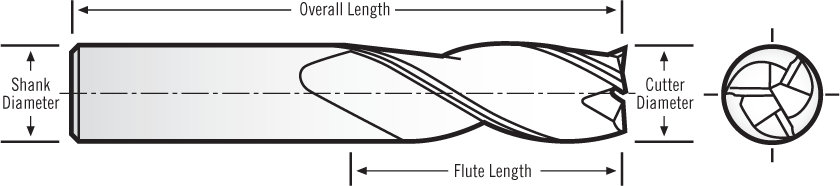

PREVIEW AND DIAGRAM (ST-341)

Specifications

Cutting Dia 0.5″
Flute Len 0.625″
Shank Dia 0.5″
Overall Len 3″
Corner Chamfer 0.006″
Blend Angle 0″

Tolerances

Cutting Diameter+.000/−.003″
Length of Cut+.060/−.000″
Shank Diameter−.0001/−.0002″
Overall Length±.060″

Catalog

Catalog Page 42

Speed & Feeds

Other Tools in this Series

Tool # Cutting Dia Flute Len Shank Dia Overall Len Corner Chamfer Blend Angle Coatings Pg. #
ST-341-040.125″0.25″0.125″1.5″0.003″0″Uncoated  AlTiN  TiCN  TiN42
ST-341-060.1875″0.375″0.1875″2″0.003″0″Uncoated  AlTiN  TiCN  TiN42
ST-341-080.25″0.5″0.25″2.5″0.003″0″Uncoated  AlTiN  TiCN  TiN42
ST-341-100.3125″0.5″0.3125″2.5″0.004″0″Uncoated  AlTiN  TiCN  TiN42
ST-341-120.375″0.625″0.375″2.5″0.005″0″Uncoated  AlTiN  TiCN  TiN42
ST-341-200.625″0.75″0.625″3.5″0.009″0″Uncoated  AlTiN  TiCN  TiN42
ST-341-240.75″1″0.75″4″0.011″0″Uncoated  AlTiN  TiCN  TiN42
