12mm Dia 6-Flute Metric End Mill 28mm LOC, 12mm Shank, 76mm OAL

6 Flute Standard Length Metric Compression Router

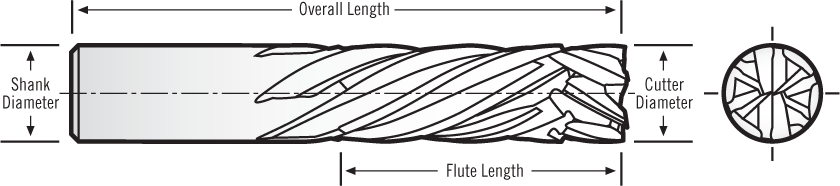

PREVIEW AND DIAGRAM (MCR-602)

Specifications

Cutting Dia 0.4724″
Flute Len 1.1024″
Shank Dia 0.4724″
Overall Len 2.9921″
Upshear Len 0.2362″

Tolerances

Cutting Diameter−.001/−.003″
Length of Cut+.030/+.060″
Shank Diameter−.0001/−.0002″
Overall Length±.060″

Catalog

Catalog Page 37

Speed & Feeds

MaterialSFM1/4"5/16"3/8"1/2"5/8"3/4"1"
MaterialSFMRPMCLPTRPMCLPTRPMCLPTRPMCLPTRPMCLPTRPMCLPTRPMCLPT
G10 Fiberglass/Polyester1000152800.0034122240.0043101870.005176400.006861120.008550930.010238200.0136
Graphite1000152800.0064122240.0080101870.009676400.012861120.016050930.019238200.0256
Graphite Fiber/Expoxy800122240.002097790.002581490.003061120.004048900.005040750.006030560.0080
Plastics1300198640.0064158910.0080132430.009699320.012879460.01666210.019249660.0256

Other Tools in this Series

Tool # Cutting Dia Flute Len Shank Dia Overall Len Upshear Len Coatings Pg. #
MCR-602-100.3937″0.9843″0.3937″2.4803″0.2362″Uncoated  DCC  DLC37
